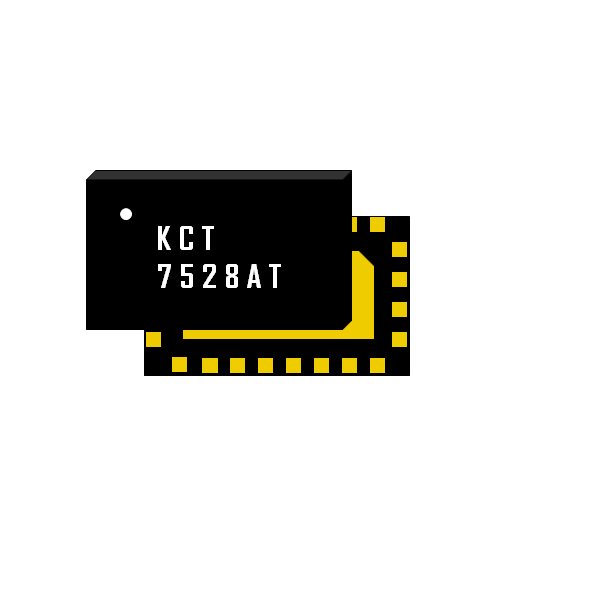

KCT7528AT
802.11p 高可靠性 V2X 射频前端模组
产品介绍

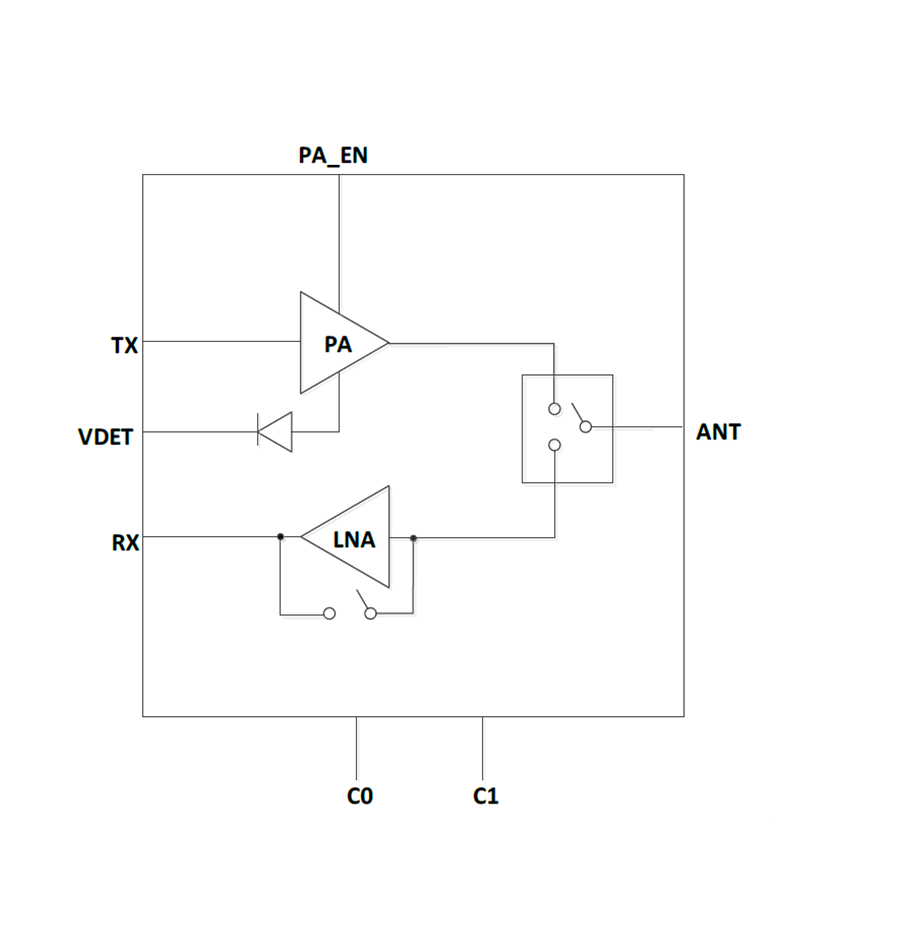

KCT7528AT is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11p DSRC and C-V2X applications and systems in the 5.770-5.925GHz range.
Supporting C V2X
WIFI protocol: 802.11p
Operating frequency band from 5.77-5.925GHz
Designed to operate over automotive
temperature from -40 to 105° C
High performance, High reliability
产品规格
Support IEEE 802.11p DSRC and C-V2X
Fully-matched input and output
Integrated power detector
Nominal Voltage at 5V
Transmit gain: 32dB
Receive gain: 16dB
Noise Figure: 1.7dB
Psat：30dBm
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN 24-pin, 3×5×0.75mm (MSL3, 260 oC per JEDEC J-STD-020)
ROHS and REACH Compliant
